The Industry’s Only True One-Piece Constructed Retainer

True-Fit was created for use in new die/retainer construction, refurbishment of existing multi-hole retainers, and engineering change implementation. True-Fit is the most economical, one-piece constructed, insertable retainer; designed to significantly reduce installation costs over any other product design.

FEATURES & BENEFITS INCLUDE:

  • Available for heavy-duty backing plate and True-Set style retainers and all standard inch and metric shank diameters
  • Made from shock resistant tool steel and through hardened
  • All critical features, including the punch hole, are self-contained and precisely finished post heat treat
  • Simple design promotes minimal effort for installation
  • CAD data available for installation machining purposes

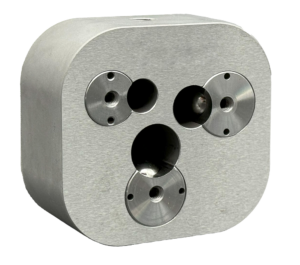

The Most Compact Ball Lock Punch Retainer Solution

Thanks to their compact size, Moeller’s ball-lock punch retainers inserts allow a series of ball-lock punches to be placed in close space applications where standard-type retainers will not suffice. This easy-to-use, standard, product avoids the need for more specialized solutions that are expensive and time consuming, by providing the ability to quickly produce multi-hole ball-lock retainers without intricate knowledge of the ball-lock system.

FEATURES & BENEFITS INCLUDE:

  • 100% Interchangeable with competing brands
  • Available in most standard inch & metric options
  • Antirotation Flat Face (does not compromise interchangeability)
  • Retention spring is self-contained and does not protrude from the bottom of the retainer
  • Locks in the retainer in perfect orientation, not allowing it to spin
  • Carefully selected steel provides optimal hardness to ensure long life
